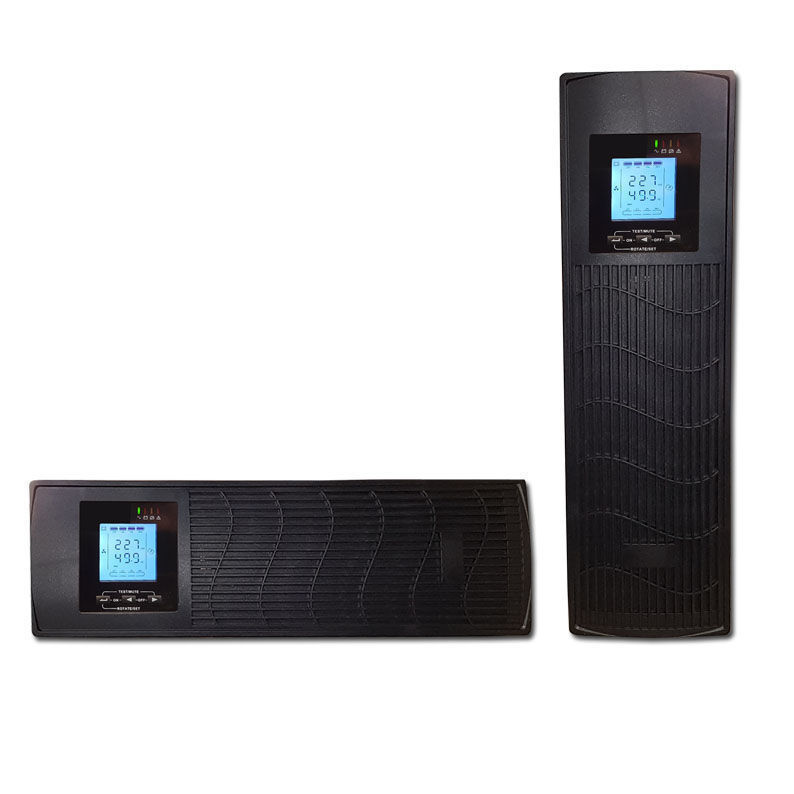

UPS EBE EA SIN Rack Plus 2000, 2000 VA, 1600 W, Line Interactive, Output waveform 100% sinusoidal, Rack/Tower

UPS EA SIN Rack Plus is compact, economical, silent, excellent alternative for applications that do not require the transition to ON LINE technology. Ideal for powering all computer equipment, it is also suitable for protecting instruments, lamps led, electric gates, telephone switchboards, security systems and video surveillance. Also suitable for domestic users and pellet stoves Autonomy calculated with 70% load (1120 W) General specifications and accessories included RJ45-USB - Slot for accessory cards - Software and USB cable - IN-Out cables - Tower EA 2U kit (6 IEC sockets)
Manufacturer: EB Elettronica
Availability: Out of stock
SKU: EAL-S20-P
2.660,00 RON incl tax
decrease increase

UPS model EA SIN Plus Rack 2000

- Rated power 2000 VA - 1600 W
- Output waveform 100% sinusoidal
- DSP digital control
- AVR voltage stabilizer
- Wide Range Input function - wide tolerance on input voltage without battery intervention
- Automatic recognition of input frequency and frequency selection consequent output (50-60 Hz)
- Possibility of operation with power supply from generator
- Auto Switching function - automatic ignition in the presence of electric current (settable)
- Auto Restart function - automatic restore when mains return (settable)
- Cold Start function - possibility of starting from battery
- Possibility of setting battery recharging current and end of discharge voltage
- Battery discharge end voltage setting (charge reserve)
- Battery recharge even from UPS off
- Energy saving function possibility of setting in battery mode with load <3% (settable)
- Load switching off function, possibility of setting in battery mode with load <3% (settable)
- Automatic and manual silencing of acoustic alarm
- Protections: short circuit, overload, under voltage / battery overload
- Front panel with LED and LCD (input voltage / frequency, battery level voltage / percentage, output voltage / frequency , W / VA measurements, load, temperature)
- Telephone network protection via RJ45 connector
- USB port and slot for SNMP or AS400 cards (optional)
-Small weight and dimensions
- Metal casing - Tower and Rack

UPS model EA SIN Plus Rack 2000

- Rated power 2000 VA - 1600 W
- Output waveform 100% sinusoidal
- DSP digital control
- AVR voltage stabilizer
- Wide Range Input function - wide tolerance on input voltage without battery intervention
- Automatic recognition of input frequency and frequency selection consequent output (50-60 Hz)
- Possibility of operation with power supply from generator
- Auto Switching function - automatic ignition in the presence of electric current (settable)
- Auto Restart function - automatic restore when mains return (settable)
- Cold Start function - possibility of starting from battery
- Possibility of setting battery recharging current and end of discharge voltage
- Battery discharge end voltage setting (charge reserve)
- Battery recharge even from UPS off
- Energy saving function possibility of setting in battery mode with load <3% (settable)
- Load switching off function, possibility of setting in battery mode with load <3% (settable)
- Automatic and manual silencing of acoustic alarm
- Protections: short circuit, overload, under voltage / battery overload
- Front panel with LED and LCD (input voltage / frequency, battery level voltage / percentage, output voltage / frequency , W / VA measurements, load, temperature)
- Telephone network protection via RJ45 connector
- USB port and slot for SNMP or AS400 cards (optional)
-Small weight and dimensions
- Metal casing - Tower and Rack

Products specifications
Other specifications
Accumulators(Batteries)3 X 9Ah
StockDeliverable in max. 10 days
Nominal Power in VA2000
Nominal Power in W1600
Autonomy in minutes (70% Load)5
Form factor3U
Connectors IEC 320 C136
UPS TypeLine Interactive with 100% sine wave
Product Files
Brochure (PDF Files)
Write your own review
  • Only registered users can write reviews
*
*
Bad
Excellent
*
*
*
Products specifications
Other specifications
Accumulators(Batteries)3 X 9Ah
StockDeliverable in max. 10 days
Nominal Power in VA2000
Nominal Power in W1600
Autonomy in minutes (70% Load)5
Form factor3U
Connectors IEC 320 C136
UPS TypeLine Interactive with 100% sine wave
