UPS EA SIN Rack Plus is compact, economical, silent, excellent alternative for applications that do not require the transition to ON LINE technology. Ideal for powering all computer equipment, it is also suitable for protecting instruments, lamps led, electric gates, telephone switchboards, security systems and video surveillance. Also suitable for domestic users and pellet stoves Autonomy calculated with 70% load (1680 W) General specifications and accessories included RJ45-USB - Slot for accessory cards - Software and USB cable - IN-Out cables - Tower EA 2U kit (6 IEC sockets)

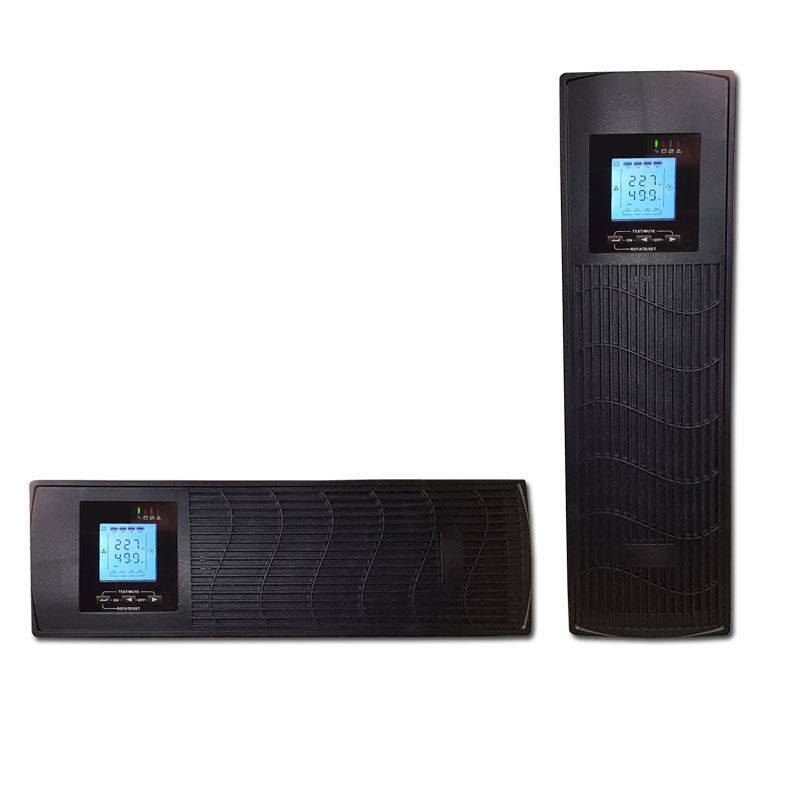

UPS model EA SIN Plus Rack 3000
- Rated power 3000 VA - 2400 W
- Output waveform 100% sinusoidal
- DSP digital control
- AVR voltage stabilizer
- Wide Range Input function - wide tolerance on input voltage without battery intervention
- Automatic recognition of input frequency and frequency selection consequent output (50-60 Hz)
- Possibility of operation with power supply from generator
- Auto Switching function - automatic ignition in the presence of electric current (settable)
- Auto Restart function - automatic restore when mains return (settable)
- Cold Start function - possibility of starting from battery
- Possibility of setting battery recharging current and end of discharge voltage
- Battery discharge end voltage setting (charge reserve)
- Battery recharge even from UPS off
- Energy saving function possibility of setting in battery mode with load <3% (settable)
- Load switching off function, possibility of setting in battery mode with load <3% (settable)
- Automatic and manual silencing of acoustic alarm
- Protections: short circuit, overload, under voltage / battery overload
- Front panel with LED and LCD (input voltage / frequency, battery level voltage / percentage, output voltage / frequency , W / VA measurements, load, temperature)
- Telephone network protection via RJ45 connector
- USB port and slot for SNMP or AS400 cards (optional)
-Small weight and dimensions
- Metal casing - Tower and Rack
